What you need to know about Phar­ma­ceu­tical water systems

ccs

And BWT solu­tions regarding your Cont­a­m­i­na­tion Control Strategy.

With the release of the EU GMP Annex 1 in August 2022, an imple­men­ta­tion of a Cont­a­m­i­na­tion Control Strategy (CCS) has become manda­tory. The scope of the CCS has changed as well. It includes not only the testing of final product, for the release rele­vant para­me­ters such as conduc­tivity, TOC and bioburden, but also the moni­toring of the overall process. Based on a cont­a­m­i­na­tion risk manage­ment (CRM), measures and activ­i­ties must be imple­mented to guar­antee the spec­i­fied func­tion­al­i­ties of each indi­vidual process step of the water purifi­ca­tion system, in partic­ular cold water systems.

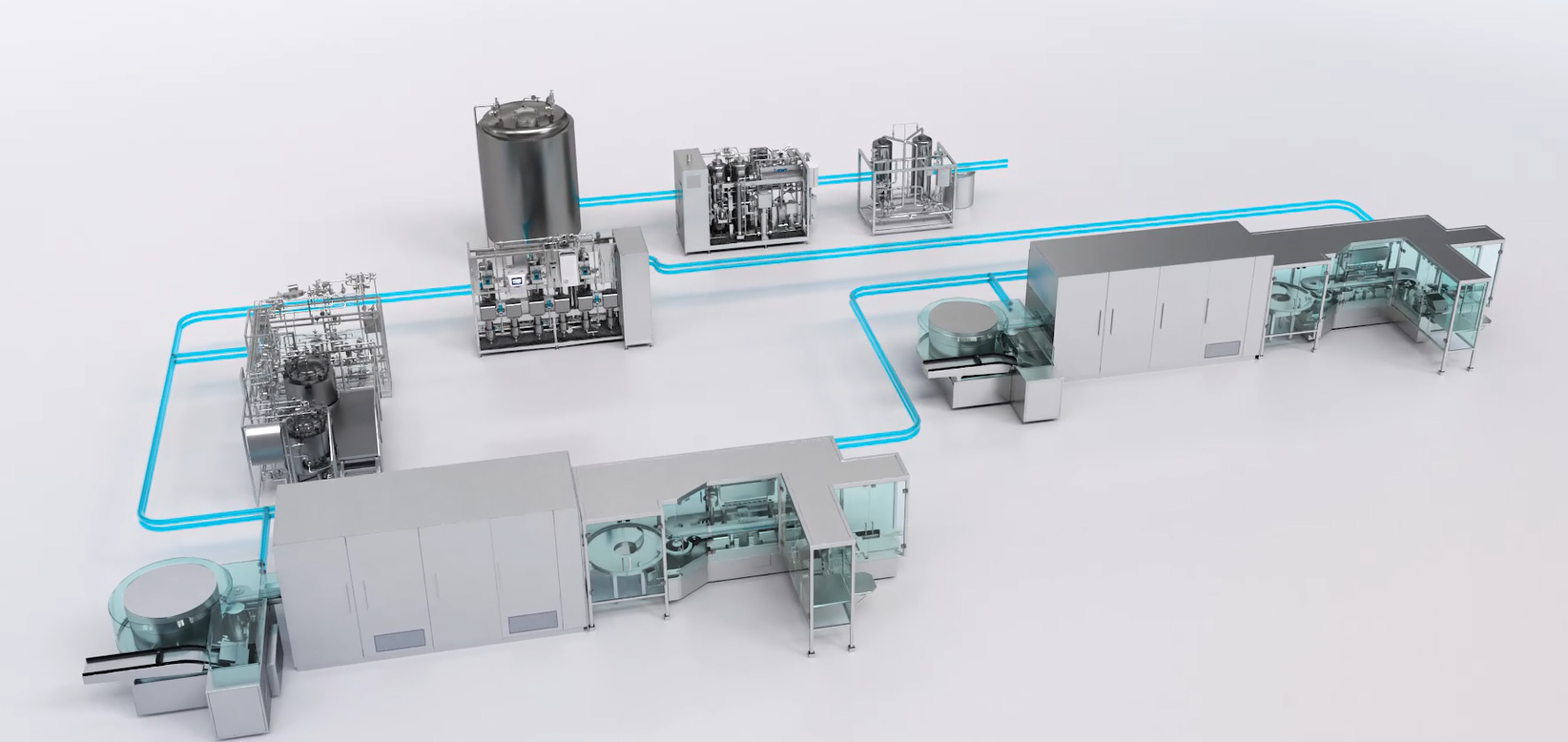

Plant with Focus on Water Systems
Plant with Focus on Water Systems
Overview of Production Plant with a Focus Point on Water Systems
With BWT solu­tions, you are prepared for the imple­men­ta­tion of a CCS.
We are here to assist you.


CCS: a holistic concept

As stated in the EU GMP Annex I: "...Appro­priate design of the facility, equip­ment and processes, followed by the imple­men­ta­tion of well-​designed proce­dures, and finally appli­ca­tion of moni­toring systems as the element that demon­strates that the design and proce­dures have been correctly imple­mented and continue to perform in line with expec­ta­tions..."
Annex 1, C (2022) 5983 final, Chapter 2.2

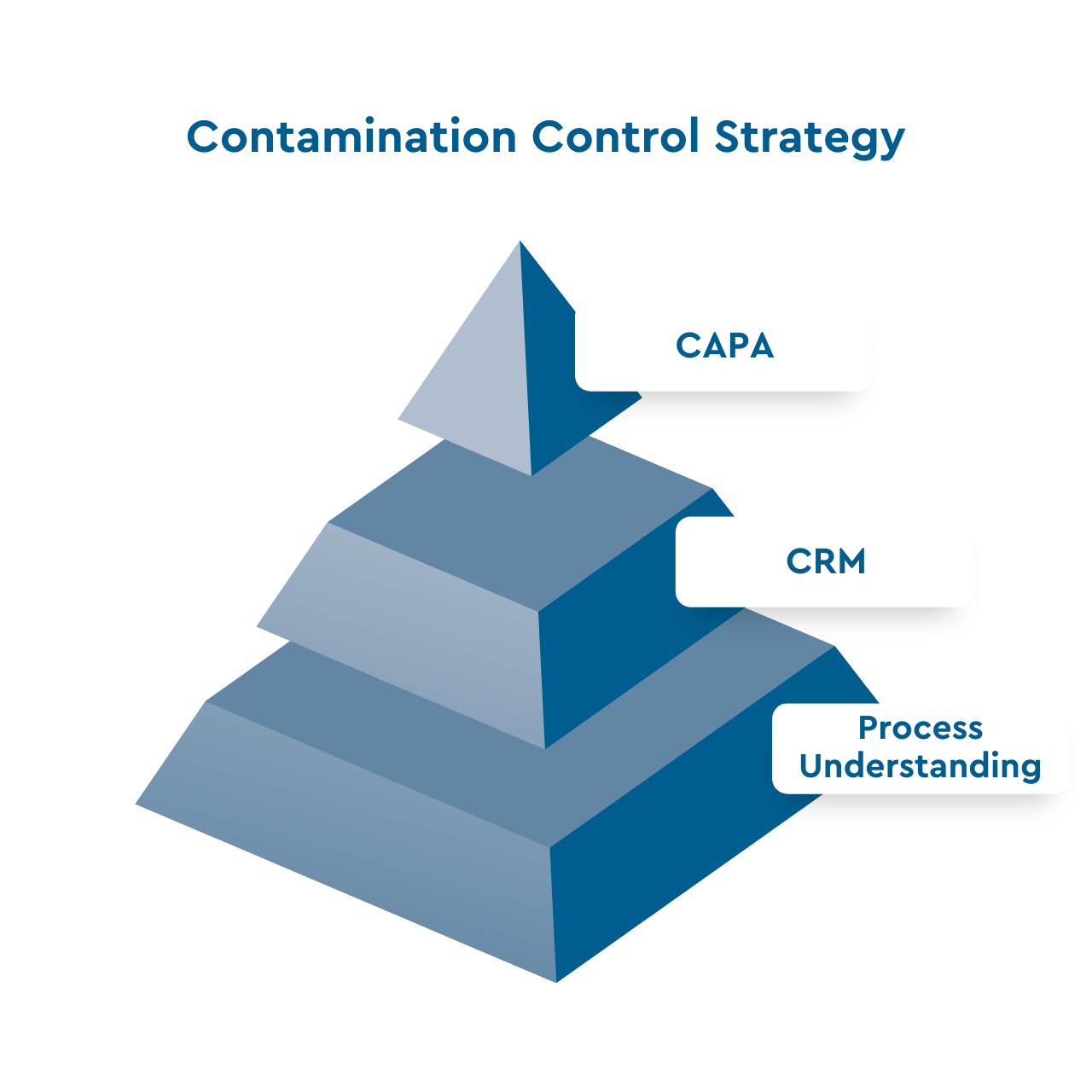

Pyramid Scheme CCS
Pyramid Scheme CCS

The CCS can be broken down to four elements

protect icon

Prevent

Learn more
monitor icon

Control

Learn more
combat icon

Combat

Learn more

Document

Learn more



Contamination Risk Management

The foundation of a successful Contamination Control Strategy is a Contamination Risk Management (CRM) which requires a deep understanding of the individual process steps and their contribution to the contamination risk. Based on the CRM, which is required to identify all risks in your water system, a CCS can be implemented.

RAW WATER AND PRE-​TREAT­MENT

The most crit­ical path for micro­bial cont­a­m­i­na­tion is through the raw water. Depending on the source of the raw water, e.g. munic­ipal water, spring water or well water the quality can be very different, and it may have serious seasonal changes. Para­me­ters like total hard­ness, chlo­ri­na­tion, dissolved inor­ganic substances like nitrate, sili­cate are crucial for the design of a water purifi­ca­tion plant. For PW and WFI it is impor­tant that the source water quality is according to drinking water stan­dards.

In terms of micro­bi­ology this means that e.g. the limit for CFU for aerobic mesophilic microor­gan­isms is in the range of 300/ml. Under these condi­tions, the real number of microor­gan­isms is in the range of 15,000 to 200,000 TCC  (Total Cell count)1. This means that there is a signif­i­cant under­es­ti­ma­tion of the bioburden by just consid­ering the CFU.

1Trinkwasserqualität



Raw Water and Pre Treatment

POINT OF USE

Whereever a water system is connected to an opening, microor­gan­isms can enter. Sampling points that are not main­tained and ster­il­ized prop­erly, connec­tions to other processes that may be cont­a­m­i­nated bear a high risk of back­wards cont­a­m­i­na­tion of the water loop.
Glass Bottle Pharma

MAIN­TE­NANCE

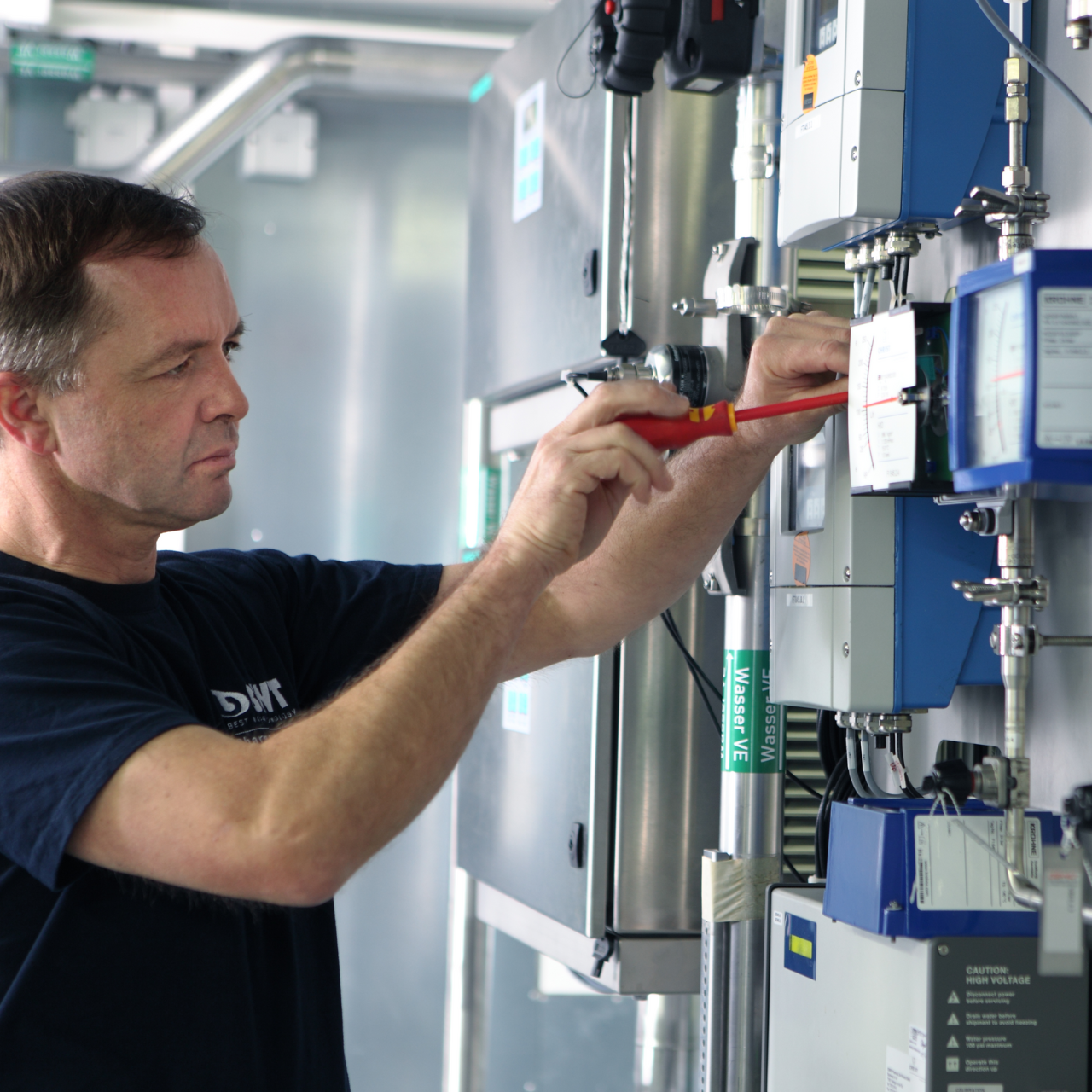

When­ever main­te­nance or repair of a water gener­a­tion or distri­b­u­tion system is needed there is a high risk to cont­a­m­i­nate the instru­ment with microor­gan­isms. Even if you exer­cise the utmost care when replacing compo­nents like valve membranes, RO or EDI membranes, or any other compo­nent, there is still a risk of cont­a­m­i­na­tion with microor­gan­isms. After restart of the plant sani­ti­za­tion and moni­toring of the bioburden is crucial for a safe use of the system. It should also be consid­ered that after opening of the plant, the popu­la­tion of microor­gan­isms may change since new organ­isms may enter the system.
Maintenance Pharma

INAD­E­QUATE SANI­TI­ZA­TION CONCEPT

Finding the ideal sani­ti­za­tion proce­dures is always a compro­mise between risk, effort, cost and tech­nical limi­ta­tions like heat or chem­ical resis­tance of the plant. Sani­ti­za­tion should be performed as less as possible but as much as required.

Insuf­fi­cient sani­ti­za­tion of a water gener­a­tion or distri­b­u­tion systems is one of the most impor­tant sources of micro­bial cont­a­m­i­na­tion. The sani­ti­za­tion process needs to be opti­mized for the indi­vidual gener­a­tion / distri­b­u­tion system. Dead legs, or pipes with small flow rates, filters or membranes e.t.c. need special atten­tion. Moni­toring that the spec­i­fied sani­ti­za­tion condi­tions (temper­a­ture, ozone concen­tra­tion …) are reached at any point of the system is crucial. Insuf­fi­cient sani­ti­za­tion can even result in forma­tion of a more resis­tant microor­ganism popu­la­tion by inducing persister cells that may survive sani­ti­za­tion processes and are able to repop­u­late biofilm.



The four main elements of CCS

Prevent

The preven­tion of a micro­bial cont­a­m­i­na­tion is crucial within the water gener­a­tion for the phar­ma­ceu­tical industry. But how can we persis­tently prevent such? By under­standing the process and thus being able to esti­mate the contri­bu­tion of the risk for a micro­bial cont­a­m­i­na­tion for each indi­vidual process step.
The design of the plant and the main­te­nance proce­dures are the two crucial aspects. We need to under­stand where the germs come from, there­fore it is crucial to know how the entire water gener­a­tion process is struc­tured.

prevent
prevent

microbiological monitoring
microbiological monitoring

Control

Heterotrophic Plate Count (HPC) is the only compen­dial method for micro­bial cont­a­m­i­na­tion moni­toring today. A serious concern for imple­menting a CCS as described in Annex I, is the fact that HPC does not detect all microor­gan­isms in a sample. Only colony forming units (CFU) are visible.
Studies have shown that the number of CFU does not reflect the number of microor­gan­isms in a system. To grasp the real micro­bial situ­a­tion in a water purifi­ca­tion system, rapid methods have to be consid­ered to gain more control.


Combat

There is no PW or WFI water gener­a­tion and distri­b­u­tion system that is sterile over the whole life­cycle. Microor­gan­isms always find a way into the plant. Either through the raw water, back contamination through user points or during main­te­nance activ­i­ties. Sterility is tech­ni­cally hard to achieve and would generate a high effort and cost and the ster­il­iza­tion proce­dures exert enor­mous stress to the equip­ment.

combat
combat

document
document

Docu­ment

A key success factor for a CCS is a gapless docu­men­ta­tion. Just talking about 21 CFR Part 11 or audit trail is not suffi­cient anymore. It’s more about data generated during the system lifecycle, raw data, meta data et cetera. Due to the increasing demands in data manage­ment and data integrity e.g., ALCOA or ALCOA+ prin­ciple and other regu­la­tions, the effort for compliant docu­men­ta­tion is perma­nently increasing. A serious number of concerns and warning letters from the FDA are related to data integrity viola­tions.
