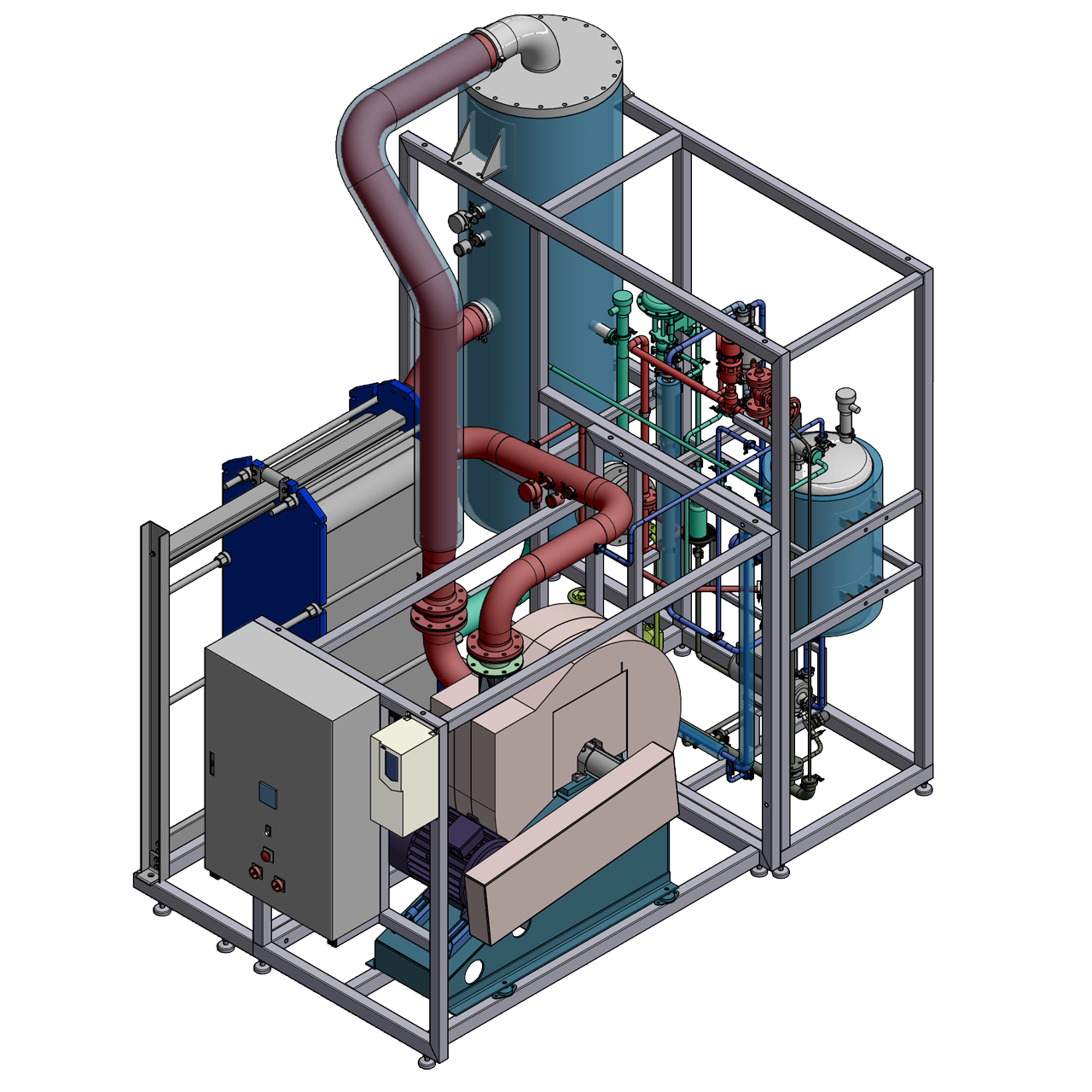

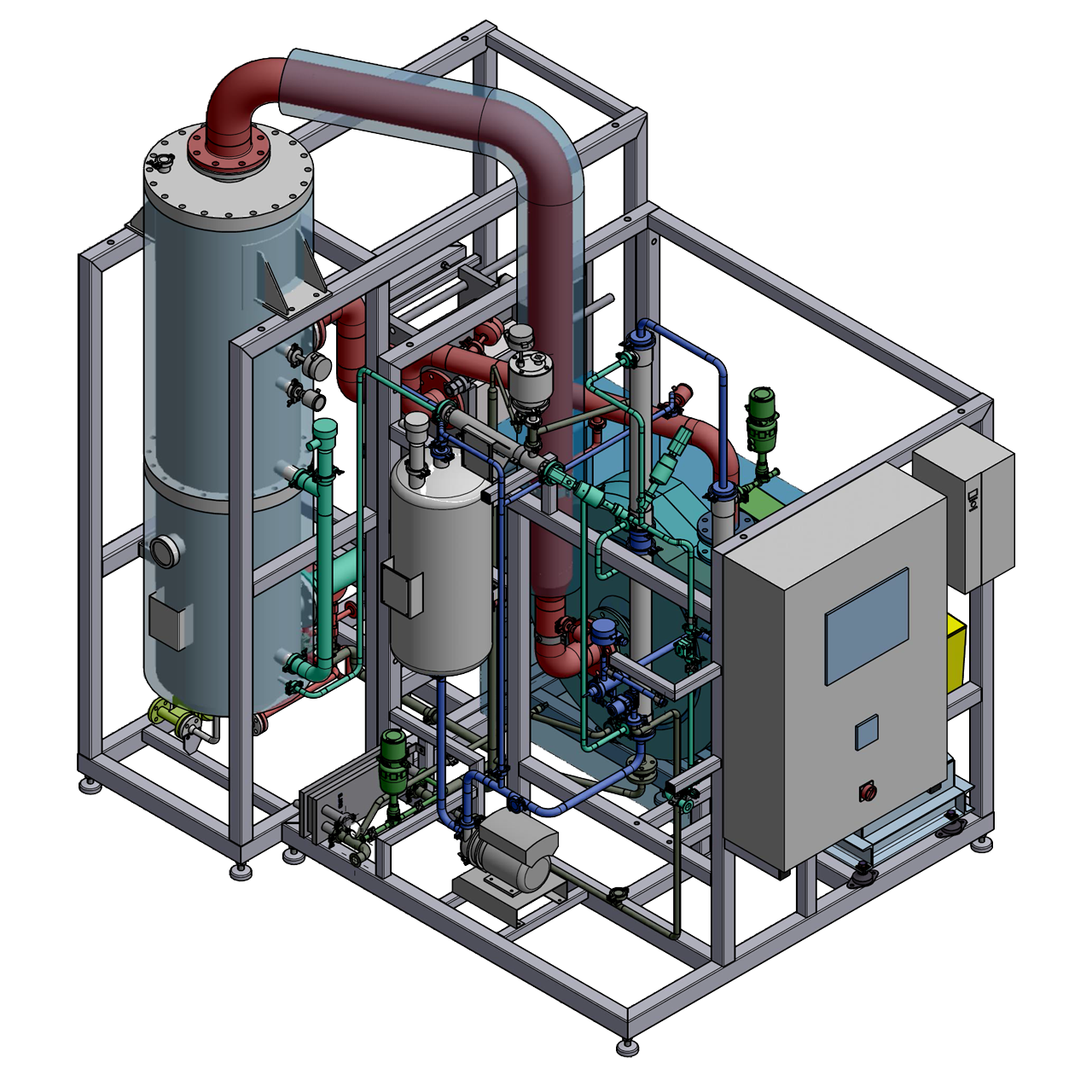

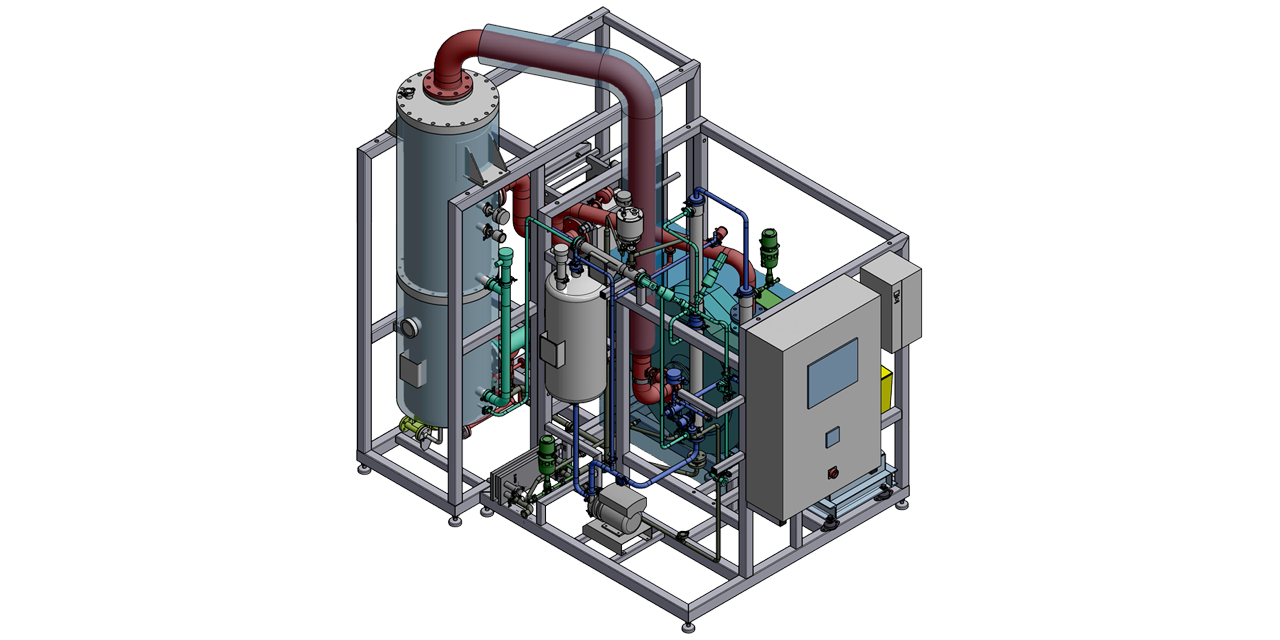

VACOTRON

Hot and cold WFI production possible without auxiliary cooling by vapor compression

More information

Small footprint and compact design
Accepts higher silica levels in the feedwater
Fast production after Stand-by
Low energy consumption
High distillate outlet level because of the WFI pump
Hot stand-by

WFI as required

Produce hot WFI or optionally at ambient temperature if required. The thermo-compression cycle offers high efficiency production of WFI and does not require cooling water for production of WFI. Non-condensable gases are removed in the Degassing tank to ensure the lowest conductivity product.

Direct drive Vapor compressor in pharma compliant material 316L

AQU@View Automation

Frequency controlled pump

Degassing tank

Evaporator column with integrated droplet separator and with integrated double tube sheet (DTS) heat exchanger)

Direct drive Vapor compressor in pharma compliant material 316L

AQU@Service for WFI System

Maximum safety, reliability, and value retention in critical production applications are achieved via quality systems, preventative service, and intelligent spare parts management.

The planned, documented AQU@Service for distillation units with BWT means users are on the safe side with sensor calibration and replacement of all seals and membranes in operation, as well as in audits and inspections.

Discover AQU@Services

Download

	WFI and Pure Steam in Best Quality	PDF, 2 Mb	Download
	AQU@ Service - Critical Utilities in the best hands	PDF, 3 Mb	Download
